ADVANCED CT TECHNOLOGY FOR LARGE PARTS

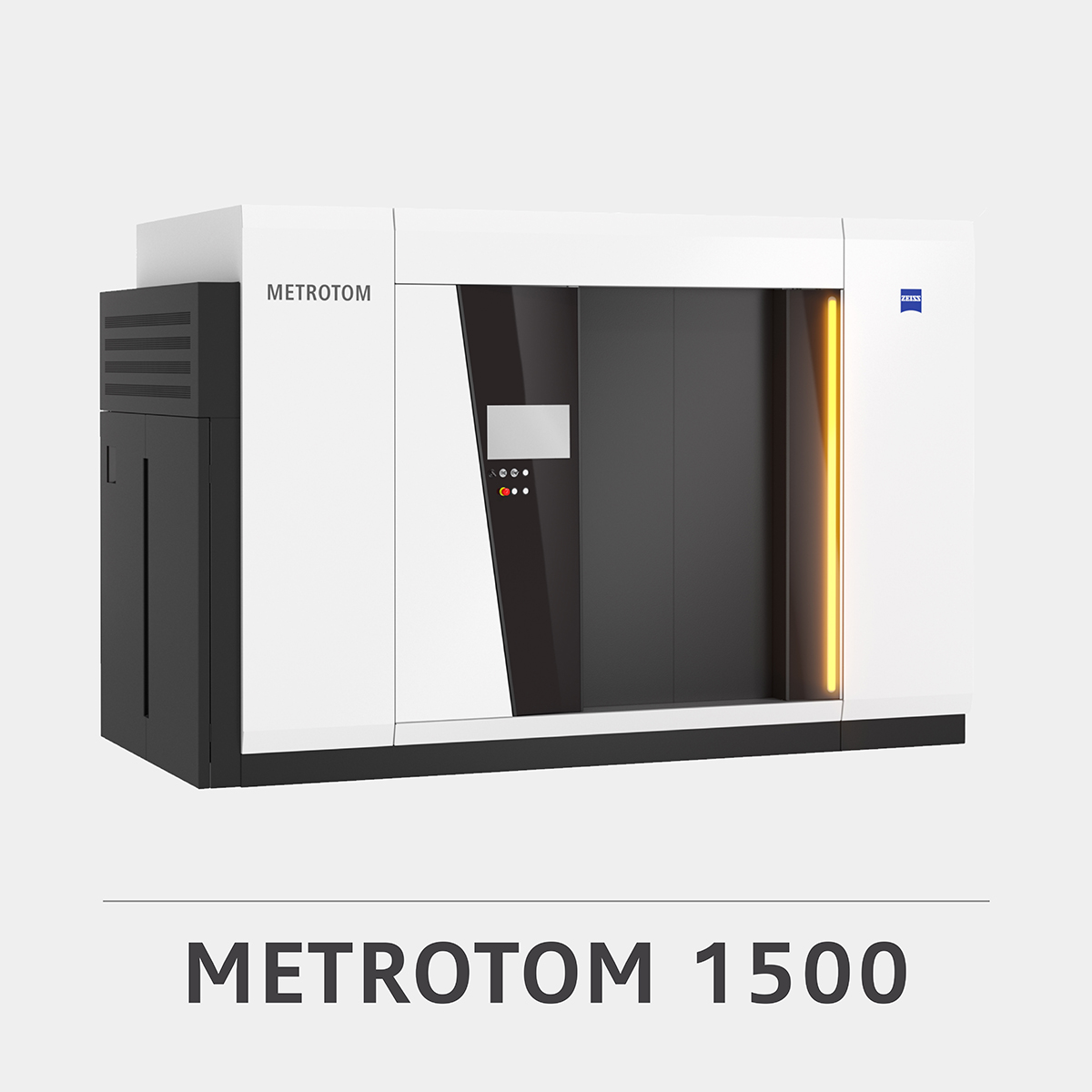

Thanks to an extended measuring volume, the ZEISS METROTOM 1500 allows for the measurement of larger parts with a higher density. Because of its smaller voxel size, the new and improved 3K detector allows even the smallest details to be shown in higher resolution with a sharper volume. Scan time can be reduced by 75% with its various operation modes with its updated detector.
Not Ready to Buy? Learn More About Our 3D Scanning Services
Request a Quote
The Leading Software For ZEISS Measurement Systems
ZEISS INSPECT (formerly GOM Inspect) is the flagship software for simple or complex inspection tasks – from capturing the part to be inspected, mesh processing, CAD import, necessary GD&T calculations to trend analyses, digital assembly or proprietary inspections.
The Leading Software For ZEISS Measurement Systems
ZEISS INSPECT (formerly GOM Inspect) is the flagship software for simple or complex inspection tasks – from capturing the part to be inspected, mesh processing, CAD import, necessary GD&T calculations to trend analyses, digital assembly or proprietary inspections.
Technical Specifications
Detector | Amount
- Voxel Size 2K Detector | 79,4 μm
- Voxel Size 3K Detector | 57,9 μm
Measuring Range | Amount
- In the image | Ø 330 mm, h 270 mm
- With max. vertical image field extension | Ø 330 mm, h, 870 mm
- With max. vertical & horizontal image field extension (optional) | Ø 615 mm, h 800 mm
Max. workpiece sizes w/ limitation of travel/measuring range | Amount
- Optimized for max. diameter | Ø 770 mm, h 1350 mm
- Optimized for max. height | Ø 516 mm, h 1500 mm
- Max. workpiece weight | 50
- Compatible Software | GOM Volume Inspect
