RELIABLE, COMPACT CT TECHNOLOGY

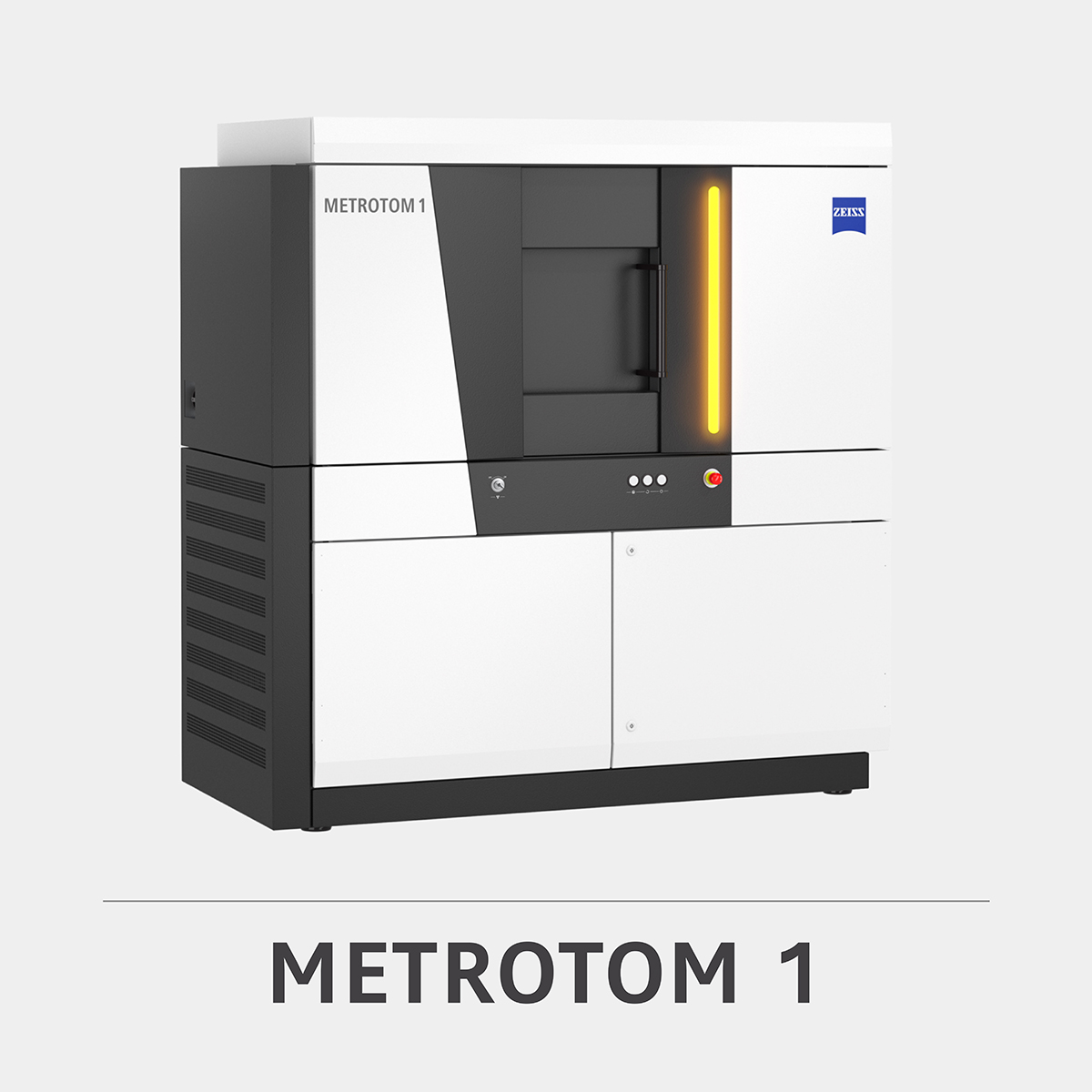

Ease of use is the main priority of the ZEISS METROTOM 1. With just one scan, any user can effectively perform complex measurement and inspection tasks. With the small size of the METROTOM 1, this CT scanner can fit into your metrology lab and allows for inhouse measurements and inspections in one step.
Not Ready to Buy? Learn More About Our 3D Scanning Services
Request a Quote
The Leading Software For ZEISS Measurement Systems
ZEISS INSPECT (formerly GOM Inspect) is the flagship software for simple or complex inspection tasks – from capturing the part to be inspected, mesh processing, CAD import, necessary GD&T calculations to trend analyses, digital assembly or proprietary inspections.
The Leading Software For ZEISS Measurement Systems
ZEISS INSPECT (formerly GOM Inspect) is the flagship software for simple or complex inspection tasks – from capturing the part to be inspected, mesh processing, CAD import, necessary GD&T calculations to trend analyses, digital assembly or proprietary inspections.
Technical Specifications
- X-ray source | 160 kV
- X-ray detector (pixels) | 2.5 k (2,500 x 2,500)
- Measuring volume | 165 x 140 mm
- Metrology specification (MPE SD) | 5 µm +L/100
- Dimensions | 1750 mm (W) x 1820 mm (H) x 870 mm (D)
- Weight | 2100 kg
- Software | GOM Volume Inspect (included)
Fields of application:
Non-destructive inspection, simultaneous scanning of several workpieces
Inspection features:
Measurements of internal and external structures, inspections of internal defects e.g. shrinkage holes.
Features | METROTOM 1 Standard | METROTOM 1 High Resolution
- Resolution | 65.3 μm | 32.6 μm
- Measuring volume | 165 x 140 mm | 80 x 80 mm
- Number of pixels | 2,560 x 2,560 | 5,120 x 5,120
- Pixel size | 78 μm x 78 μm | 39 μm x 39 μm
- Accs. included | Fixture plates (2x) | Plate holder; Fixture plate ; Hexagonal screwdriver; M3 ; Adhesive discs (2x)
