A DIGITAL CONNECTIVITY SOLUTION

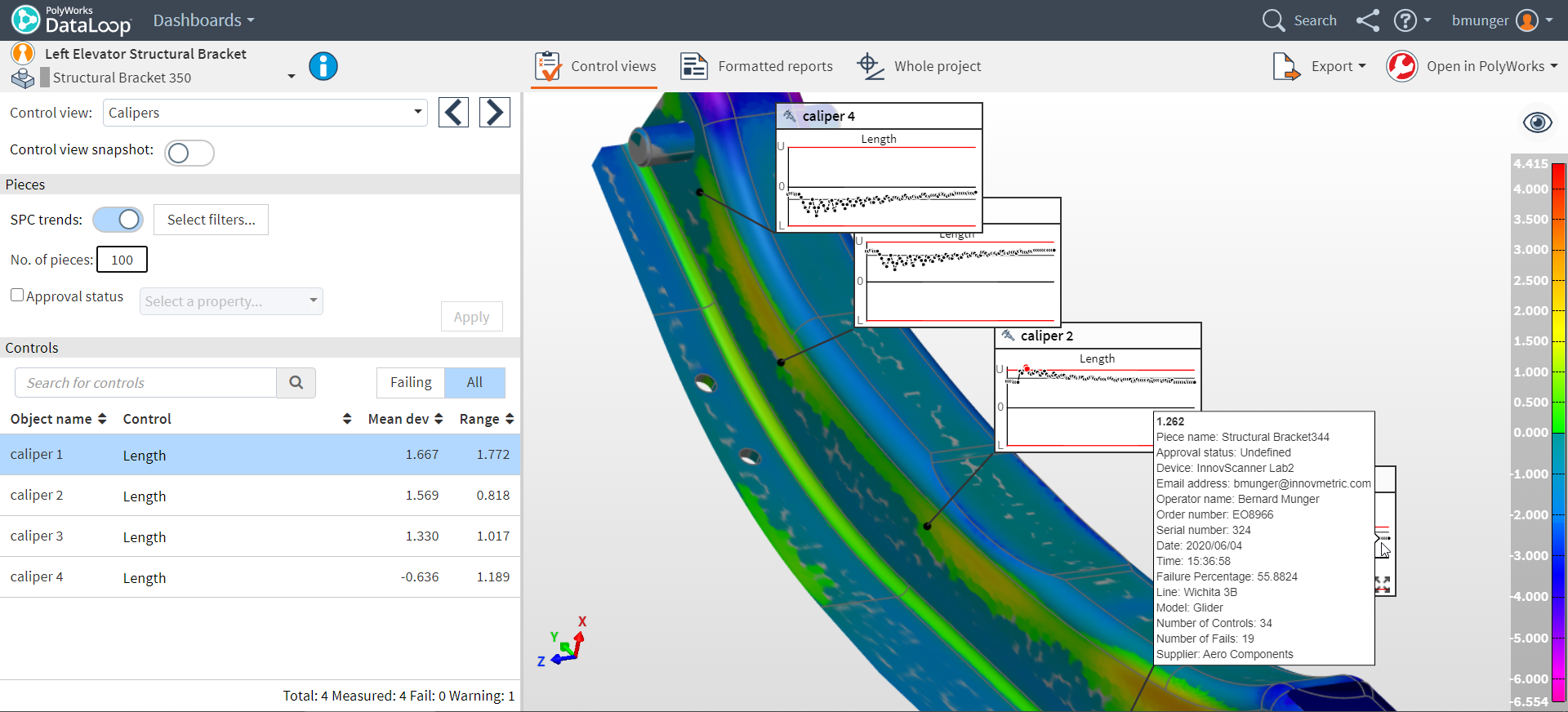

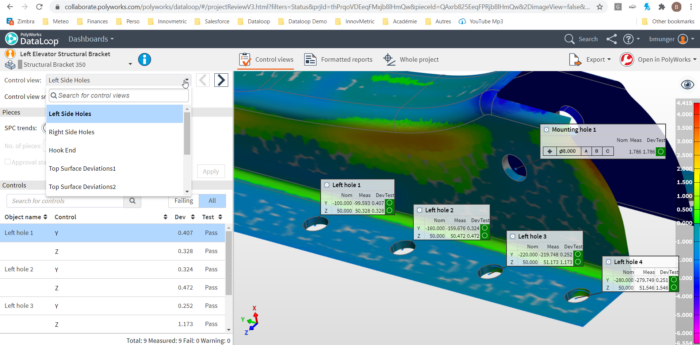

PolyWorks|DataLoop™ is a data management solution allowing the sharing of 3D measurement data and results company wide. Share data with a colleague anytime through a clickable hyperlink that opens an inspection project in 3D on any digital device, including mobile. While having real-time analyzing, you are able to manage SPC and take action in the moment.

  • WEB-BASED, MULTI-PLATFORM ACCESS

  • CENTRALIZED DATA STORAGE

  • ANALYZE REAL-TIME RESULTS

Not Ready to Buy? Learn More About Our 3D Scanning Services

Request a Quote

Name(Required)
Address(Required)
This field is for validation purposes and should be left unchanged.
3D Scan Data from InnovMetric PolyWorks | Inspector

Achieving Quality Excellence Together

Explore the entire PolyWorks Solutions offered by Exact Metrology

Achieving Quality Excellence Together

Explore the entire PolyWorks Solutions offered by Exact Metrology

Technical Specifications - Recommendation for up to 50 Users with a Single Server

Machine configuration:

  • Operating system: Microsoft Windows Server 2016 or later
  • CPU: 4 physical cores
  • RAM: 32 GB
  • Disk space:
    • 500 GB on a solid-state drive (SSD) for the operating system, all components to install, as well as for the Microsoft SQL Server instance and database files.
    • At least 1 TB on a hard disk drive (HDD) for the Microsoft SQL Server FILESTREAM data.
  • Software components:
    • Microsoft SQL Server 2017 or later
    • PolyWorks|DataLoop Core
    • PolyWorks|DataLoop Web Interface Server
    • PolyWorks Collaborative Suite License Server
    • Internet Information Services (IIS)
    • SSL certificate – required for the HTTPS communication to the server
  1. The required size varies depending on the volume of data stored in the file system. A monitor software should be configured to send alerts when disk space is low.
  2. PolyWorks|DataLoop Web Interface Server must not be installed on a domain controller server.
  3. SSL certificates issued from a well-known certification authority are recommended.

Technical Specifications - Recommendation for 50 to 250 Users with Two Separate Servers

Server 1 configuration:

  • Operating system: Microsoft Windows Server 2012 R2 or later
  • CPU: 8 physical cores
  • RAM: 32 GB
  • Disk space:
    • 500 GB on a solid-state drive (SSD) for the operating system, all components to install on this server as well as for the Microsoft SQL Server instance and database files.a
    • At least 20 TB on a hard disk drive array (HDD RAID) for the Microsoft SQL Server FILESTREAM data.
  • Software components:
    • Microsoft SQL Server 2017bc or later
    • Internet Information Services (IIS)
  1. The required size varies depending on the volume of data stored in the file system. A monitor software should be configured to send alerts when disk space is low.
  2. We recommend that you do not install Microsoft SQL Server on a domain controller.
  3. Microsoft SQL Server Enterprise Edition is recommended if 24/7 operation is required and no downtime is expected.

Server 2 configuration:

  • Operating system: Microsoft Windows Server 2016 or later
  • CPU: 4 physical cores
  • RAM: 16 GB
  • Disk space: 250 GB on a solid-state drive (SSD)
  • Software components:
    • PolyWorks|DataLoop Web Interface Server
    • PolyWorks|DataLoop Core
    • PolyWorks Collaborative Suite License Server
    • Internet Information Services (IIS)
    • SSL certificate – required for the HTTPS communication to the server
  1. PolyWorks|DataLoop Web Interface Server must not be installed on a domain controller server.
  2. SSL certificates issued from a well-known certification authority are recommended.
