COMPACT, MOBILE, AND VERSATILE

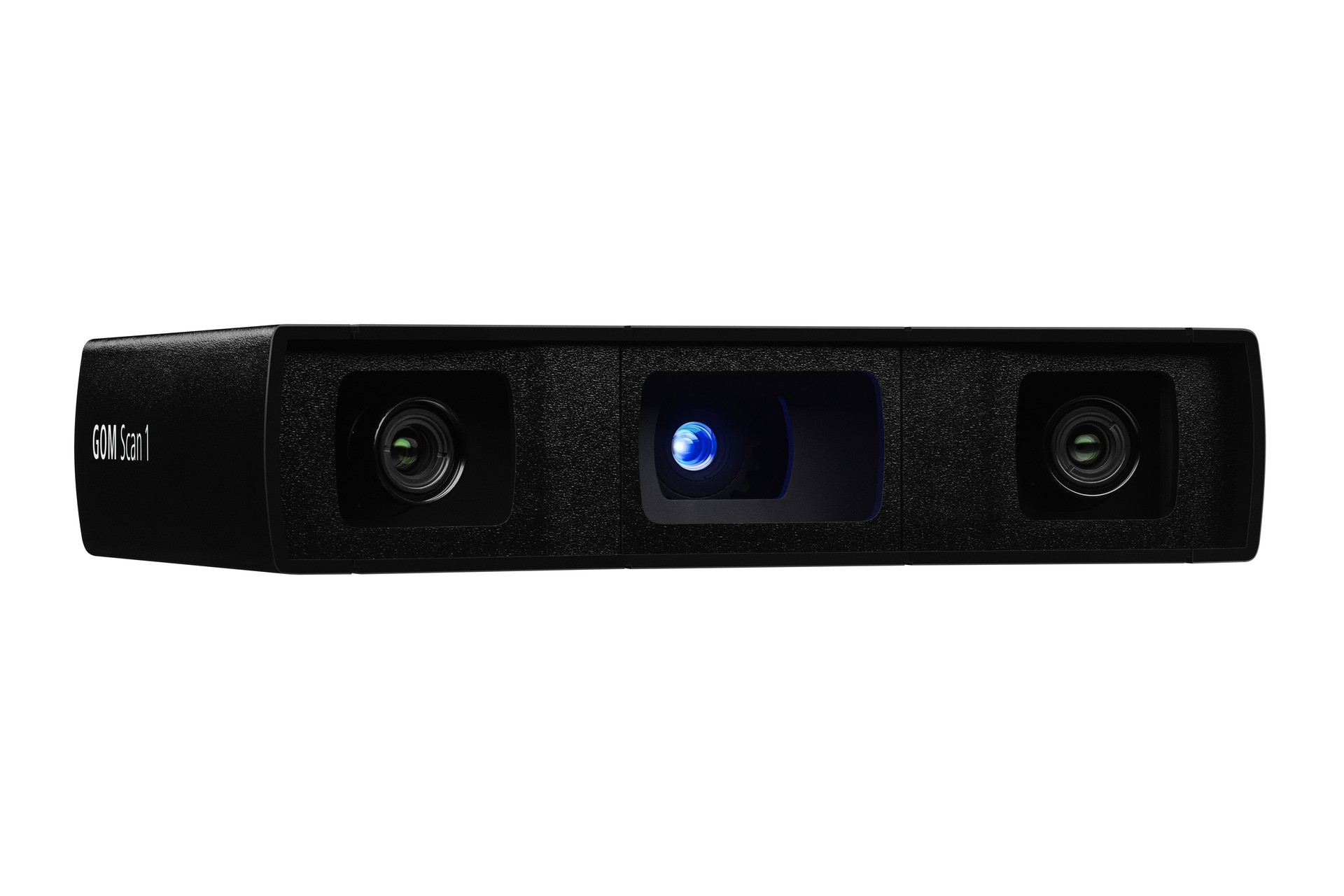

The GOM Scan 1 features a compact build that is built to deliver 3D data with precision. This scanner carries GOM fringe projection technology and Blue Light Technology to help deliver accurate 3D meshes. Powered by GOM Inspect, you can apply this mesh to any project that fits your needs including, 3D printing, reverse engineering, or part inspection.
Not Ready to Buy? Learn More About Our 3D Scanning Services
Request a Quote
The Leading Software For ZEISS Measurement Systems

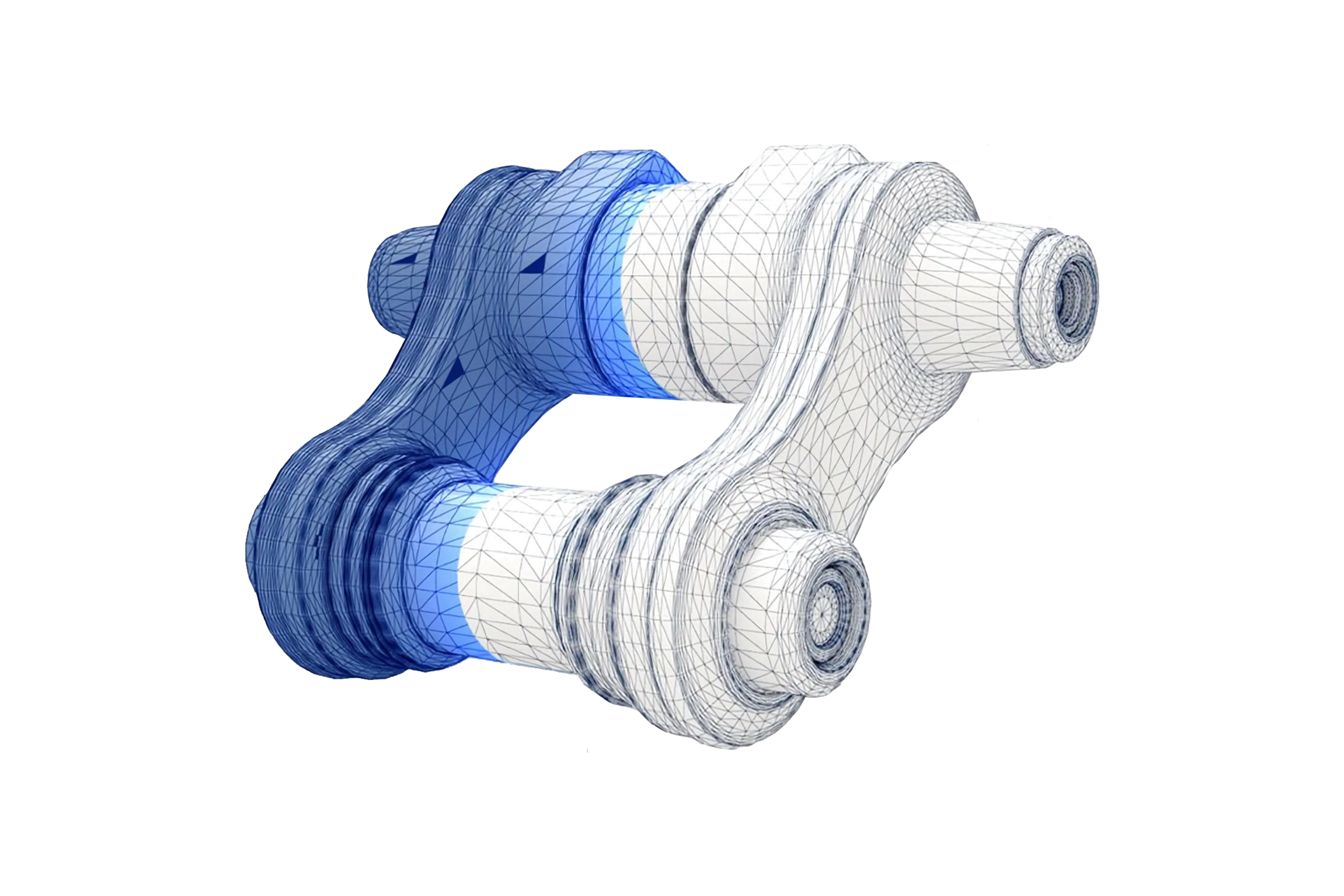

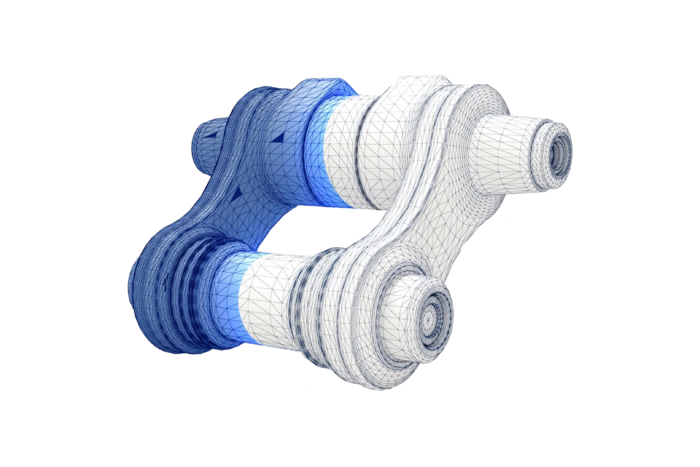

ZEISS INSPECT (formerly GOM Inspect) is the flagship software for simple or complex inspection tasks – from capturing the part to be inspected, mesh processing, CAD import, necessary GD&T calculations to trend analyses, digital assembly or proprietary inspections.
The Leading Software For ZEISS Measurement Systems
ZEISS INSPECT (formerly GOM Inspect) is the flagship software for simple or complex inspection tasks – from capturing the part to be inspected, mesh processing, CAD import, necessary GD&T calculations to trend analyses, digital assembly or proprietary inspections.
GOM Scan 1 (100)
- Points per scan | 6 million
- Point distance | 0.037 mm
- Measuring area | 100 x 65 mm²
- Working distance | 400 mm
- Light source | LED
- Weight | approx. 2.5 kg
- Dimensions | 290 x 215 x 80 mm³
- Cable length | 5 m
- Connection | USB 3
- Operating system | Windows 10
- Software | GOM Inspect
GOM Scan 1 (200)
- Points per scan | 6 million
- Point distance | 0.060 mm
- Measuring area | 200 x 125 mm²
- Working distance | 450 mm
- Light source | LED
- Weight | approx. 2.5 kg
- Dimensions | 290 x 215 x 80 mm³
- Cable length | 5 m
- Connection | USB 3
- Operating system | Windows 10
- Software | GOM Inspect
GOM Scan 1 (400)
- Points per scan | 6 million
- Point distance | 0.129 mm
- Measuring area | 400 x 250 mm²
- Working distance | 500 mm
- Light source | LED
- Weight | approx. 2.5 kg
- Dimensions | 290 x 215 x 80 mm³
- Cable length | 5 m
- Connection | USB 3
- Operating system | Windows 10
- Software | GOM Inspect
